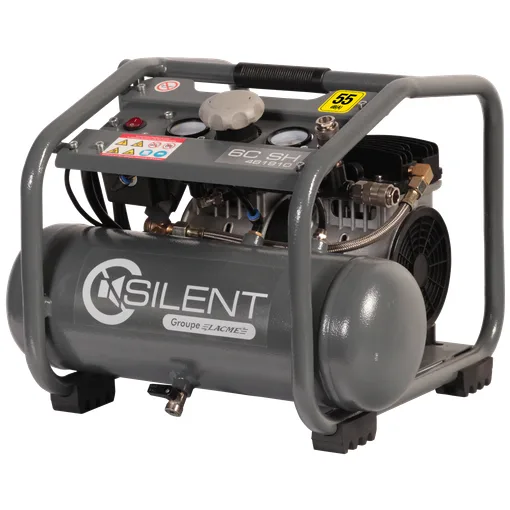

Silent 6/6C SH single-phase monoblock silent compressor LAC461910 Lacme
LACME LAC461910 monoblock silent compressor, 230V, 0.75 hp. 6L tank, 3.6 m³/h delivered air flow, 8 bar max pressure. Dimensions 410x400x330 mm, 16.5 kg.
Internal SKU: LAC461910
- Brand
- Lacme
- Reference
- LAC461910
221,72 €266,06 € TTC
- Direct shipping from supplier
- Tracking number sent by email
Technical specifications Lacme LAC461910
- poids (kg)
- 16,5
- tension (v)
- 230
- hauteur (mm)
- 330
- largeur (mm)
- 400
- longueur (mm)
- 410
- nombre de cylindre
- 2
- pression max. (bar)
- 8
- débit aspiré (m³/h)
- 6,20
- capacité de la cuve (l)
- 6
- débit restitué (m³/h)
- 3,60
- vitesse de rotation (tr/min)
- 1450
- puissance du moteur (cv - kw)
- 0,75 - 0,55
FAQ Silent 6/6C SH single-phase monoblock silent compressor LAC461910
- What is the difference between the intake air flow and the delivered air flow for this model?
- The intake air flow is 6.20 m³/h, while the delivered air flow is 3.60 m³/h. This difference reflects losses inherent in the compressor's thermodynamic efficiency. When sizing your pneumatic tools, you must base your calculations on the delivered air flow.
- Is the SILENT 6/6C SH model suitable for intensive use?
- With a motor power of 0.55 kW and a 6-litre tank capacity, this compressor is designed for occasional use requiring a low air reserve. Its rotation speed of 1450 tr/min promotes quieter operation, suitable for environments where noise comfort is required.
- What precautions should be taken for the installation of this monoblock compressor?
- The unit operates at a voltage of 230 V and weighs 16.5 kg. It must be installed on a flat, stable surface to absorb vibrations related to the operation of the two cylinders. Ensure that the electrical power supply strictly matches the provided specifications to guarantee motor protection.
