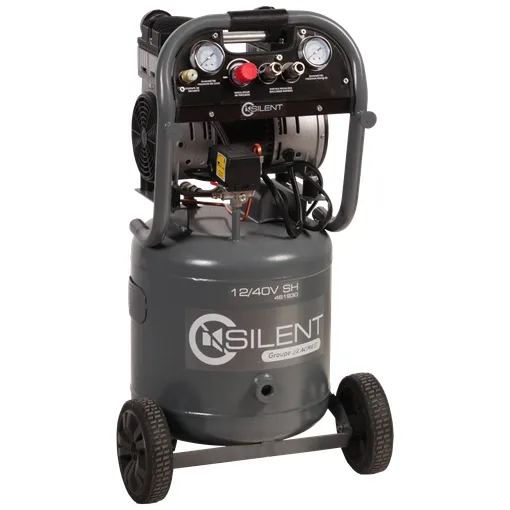

SILENT 12/40 SH vertical single-phase silent monobloc compressor LAC461930 Lacme
LACME SILENT 12/40 SH single-phase compressor, 40L, 8 bar. 1.1 kW motor, 1420 rpm. Compact vertical design for silent operation.
Internal SKU: LAC461930
- Brand
- Lacme
- Reference
- LAC461930
406,70 €488,04 € TTC
- Direct shipping from supplier
- Tracking number sent by email
Technical specifications Lacme LAC461930
- poids (kg)
- 36,5
- tension (v)
- 230
- hauteur (mm)
- 810
- largeur (mm)
- 150
- longueur (mm)
- 400
- nombre de cylindre
- 2
- pression max. (bar)
- 8
- débit aspiré (m³/h)
- 12,1
- capacité de la cuve (l)
- 40
- débit restitué (m³/h)
- 8
- vitesse de rotation (tr/min)
- 1420
- puissance du moteur (cv - kw)
- 1,5 - 1,1
FAQ SILENT 12/40 SH vertical single-phase silent monobloc compressor LAC461930
- How do I interpret the difference between the intake air flow and the delivered air flow?
- The intake air flow is 12.1 m³/h while the delivered air flow is 8 m³/h. This value of 8 m³/h represents the actual performance during output usage, accounting for losses related to the thermodynamic efficiency of the monobloc unit.
- What is the advantage of the 1420 rpm rotation speed on this model?
- The rotation speed of 1420 rpm is optimised for silent operation, a signature feature of the SILENT range. This rotation frequency limits noise pollution while ensuring increased longevity for the compressor's mechanical components.
- What precautions should be taken for the installation of this vertical model?
- With a footprint of 400x150 mm and a height of 810 mm, this 36.5 kg vertical compressor requires a flat and stable surface to absorb vibrations. Ensure sufficient clearance around the unit to allow effective ventilation for the 1.1 kW motor.
